Pressure Tech ACU310 Diaphragm-Sensed Auto-Changeover Unit

ACU310

Auto-Changeover Regulator/Unit: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv: 0.06
* Basic Model
ACU310
ACU310
* Regulator Option
Standalone Changeover Regulator
Standalone Changeover Regulator
Wall-Mounted Changeover Unit
* Body Material
316SS
316SS
* Outlet Range
Up to 2 bar (29 psi)
Up to 2 bar (29 psi)
Up to 4 bar (58 psi)
Up to 10 bar (145 psi)
Up to 20 bar (290 psi)
* Seat
PCTFE
PCTFE
PEEK™ - only available if ACU310 supplied as standalone unit
* Gauge Option
No Gauges Included
No Gauges Included
Full Safety Pattern Gauges Included
* Relief Valve
No Relief Valve
No Relief Valve
Fitted with Relief Valve
Part Order Number:
checkACU310 - 1 - S - 02 - K - N - N
Pressure Tech ACU310 Diaphragm-Sensed Auto-Changeover UnitPressure Tech ACU310 Diaphragm-Sensed Auto-Changeover UnitPressure Tech ACU310 Diaphragm-Sensed Auto-Changeover Unit

QTY
PRICE:LOGIN
LEAD TIME: Typical Lead Time: 5 Working Weeks
 Product OverviewFeaturesSpecificationDownloads
Overview
INTRODUCING THE ACU310...
The ACU310 is available in to purchase in two configurations:
Option 1: A standalone changeover regulator comprising of two regulators within one regulator body. This allows the continual supply of gas between two bottles due to a differential pressure setting of the two pressure regulators. This will lead to a change in the outlet pressure as the changeover between the main supply and secondary supply takes place.

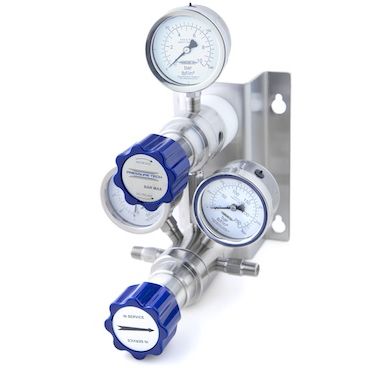

Option 2: A compact wall-mounted changeover unit that provides a steady outlet pressure from a second-stage pressure regulator as the first-stage changeover regulator controls the pressure from the primary and secondary gas cylinders.

Check valves are fitted as standard to both options to prevent gas from escaping whilst bottles are replaced. Ancillary equipment such as pressure gauges and relief valves can also be added.
