High Flow Pressure Regulators

The high-flow 'HF Series’ includes diaphragm and piston-sensed regulators with port sizes ranging from between 1/2" and 3" with either threaded or flanged connections. Pressure control options up to 10bar (145psi) with a diaphragm-sensed element and up to 210bar (3,045psi) with a piston-sensed element. Available with spring-loaded or dome-loaded to minimise the droop effect on the regulator. Flanged connections also available. Choose from the options below or email sales@pressure-tech.com for selection advice.
High Flow Pressure Regulators

High Flow Pressure Regulators

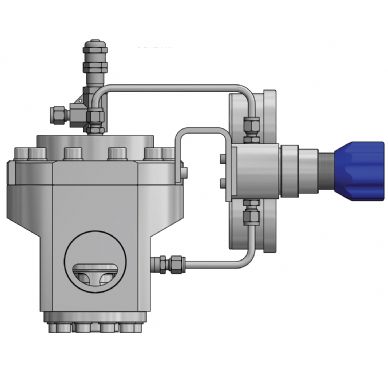

Pressure Tech HF211 High-Flow Piston-Sensed Pressure Regulator

moreHF211
High-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 210 bar (3,045 psi) / Max. Outlet: 200 bar (2,900 psi) / Cv 13.0

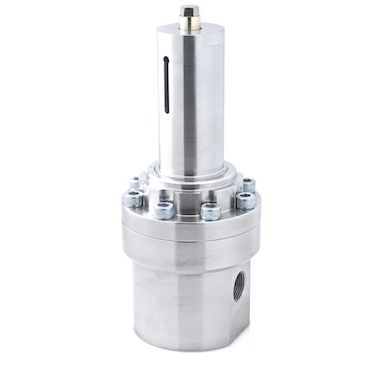

Pressure Tech HF250 High-Flow Diaphragm-Sensed Pressure Regulator

moreHF250
High-Flow Pressure Regulator: Gas or Liquid / Diaphragm / Non-Venting / Max. Inlet: 250 bar (3,625 psi) / Max. Outlet: 10 bar (145 psi) / Cv 7.0

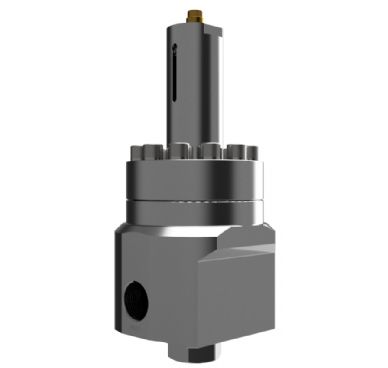

Pressure Tech HF251 High-Flow Piston-Sensed Pressure Regulator

moreHF251
High-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 250 bar (3,625 psi) / Max. Outlet: 200 bar (2,900 psi) / Cv 7.0

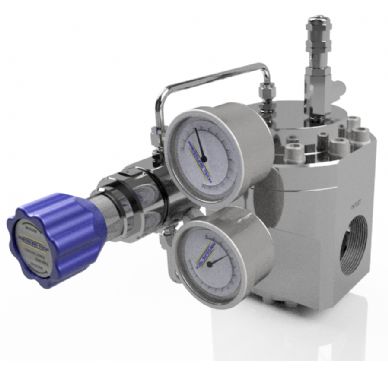

Pressure Tech HF300 High-Flow Piston-Sensed Pressure Regulator

moreHF300
High-Flow Pressure Regulator: Gas or Liquid / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 10 bar (145 psi) / Cv 4.0

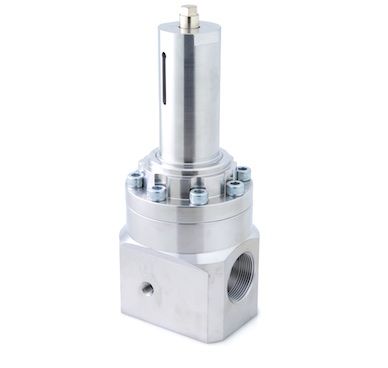

Pressure Tech HF-301 High-Flow Piston-Sensed Pressure Regulator

moreHF301
High-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 300 bar (4,350 psi) / Cv 4.0
