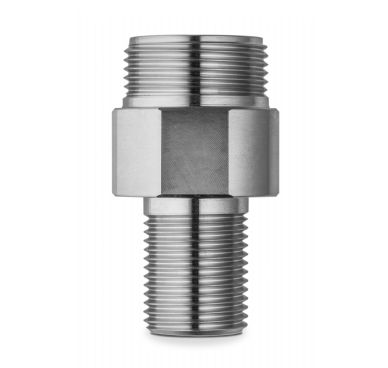

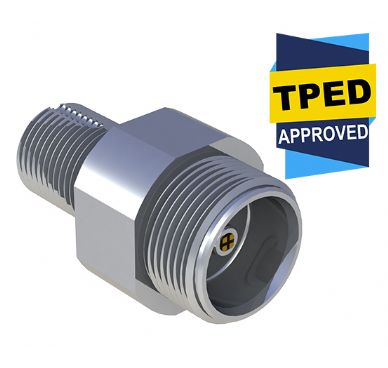

Pressure Tech CV414-SC TPED-Certified Self-Closing Cylinder Valve for High Pressure Gas Systems

CV414-SC

Self-Closing Cylinder Valve: Gas / Max. Rating: 414 bar (6,000 psi) / Cv 0.06 / TPED Certified Up To 350 bar (5,075 psi)
* Basic Model
CV414SC
CV414SC
* Body Material
AISI 316/316L Stainless Steel
AISI 316/316L Stainless Steel
* Seat
PCTFE (max. 350 bar/5,075 psi inlet pressure)
PCTFE (max. 350 bar/5,075 psi inlet pressure)
PEEK™ (max. 414 bar/6,000psi)
* Cylinder Connection
5/8"-18 UNF Cylinder (Male)
5/8"-18 UNF Cylinder (Male)
M18x1.5 Cylinder (Male)
* Burst Disc Port
No Burst Disc Port
No Burst Disc Port
Burst Disc Port with 3/8"-24 UNF Thread
Burst Disc Port with M11 x 0.75 Thread
* TPED Certification
No TPED Certification
No TPED Certification
TPED Certification (Up to 350 bar (5,075 psi) only)
Part Order Number:
checkCV414SC - S - K - 01C - NBD - NT
Pressure Tech CV414-SC TPED-Certified Self-Closing Cylinder Valve for High Pressure Gas SystemsPressure Tech CV414-SC TPED-Certified Self-Closing Cylinder Valve for High Pressure Gas SystemsPressure Tech CV414-SC TPED-Certified Self-Closing Cylinder Valve for High Pressure Gas SystemsPressure Tech CV414-SC TPED-Certified Self-Closing Cylinder Valve for High Pressure Gas Systems

Call for Pricing
** Phone +44 (0)1457 899 307 or email sales@pressure-tech.com **
VIEW ACCESSORIES
 Product OverviewFeaturesSpecificationDownloads
Overview
INTRODUCING THE CV414-SC...
The CV414-SC is a TPED-certified self-closing cylinder valve for high pressure gas systems, offering users a quick and simple disconnect feature. When connected, it provides a continual supply of gas to the system. If a cylinder refill is required, the CV414-SC’s low torque design means it is easy for users to disconnect the valve to isolate the gas supply, even under high pressure, whilst the valve remains attached to the gas cylinder.

The TPED certification allows its use on applications involving the transportation of pressure equipment up to 350 bar (5,075 psi).

Plus, as an optional extra, a burst disc may be added to offer additional gas cylinder protection.
Accessories
LW351

moreLW351
Pressure Regulator for Drone & Lightweight Hydrogen Fuel Cell Applications with Direct Cylinder Connection: Gas / Piston / Non-Venting / Max. Inlet: 350 bar (5,075 psi) / Max. Outlet: 3 bar (45 psi) / Cv 0.06
