Hydrogen Pressure Regulators

RF1034

Pressure Regulator for Hydrogen Refuelling Applications: Gas / Piston / Non-Venting or Self-Venting (Captured) / Max. Inlet: 1,034 bar (15,000 psi) / Max. Outlet: 1,034 bar (15,000 psi) / Cv 0.5 or 1.0

* Basic Model RF1034 RF1034	* Cv Value 0.5 0.5 1.0
* Body Material 316/316L Stainless Steel 316/316L Stainless Steel	* Outlet Range Up to 50 bar (725 psi) - Pneumatically Actuated Up to 50 bar (725 psi) - Pneumatically Actuated Up to 50 bar (725 psi) - Electrically Actuated Up to 50 bar (725 psi) - Low-Speed Electrically Actuated Up to 50 bar (725 psi) - Spring-Loaded Up to 100 bar (1,450 psi) - Pneumatically Actuated Up to 100 bar (1,450 psi) - Electrically Actuated Up to 100 bar (1,450 psi) - Low-Speed Electrically Actuated Up to 100 bar (1,450 psi) - Spring-Loaded Up to 150 bar (2,175 psi) - Pneumatically Actuated Up to 150 bar (2,175 psi) - Electrically Actuated Up to 150 bar (2,175 psi) - Low-Speed Electrically Actuated Up to 150 bar (2,175 psi) - Spring-Loaded Up to 200 bar (2,900 psi) - Pneumatically Acuated Up to 200 bar (2,900 psi) - Electrically Actuated Up to 200 bar (2,900 psi) - Low-Speed Electrically Actuated Up to 200 bar (2,900 psi) - Spring-Loaded Up to 414 bar (6,000 psi) - Pneumatically Actuated Up to 414 bar (6,000 psi) - Electrically Actuated Up to 414 bar (6,000 psi) - Low-Speed Electrically Actuated Up to 414 bar (6,000 psi) - Spring-Loaded Up to 500 bar (7,250 psi) - Pneumatically Actuated Up to 500 bar (7,250 psi) - Electrically Actuated Up to 500 bar (7,250 psi) - Low-Speed Electrically Actuated Up to 500 bar (7,250 psi) - Spring-Loaded Up to 690 bar (10,000 psi) - Pneumatically Actuated Up to 690 bar (10,000 psi) - Electrically Actuated Up to 690 bar (10,000 psi) - Low-Speed Electrically Actuated Up to 690 bar (10,000 psi) - Spring-Loaded Up to 1,034 bar (15,000 psi) - Pneumatically Actuated Up to 1,034 bar (15,000 psi) - Electrically Actuated Up to 1,034 bar (15,000 psi) - Low-Speed Electrically Actuated Up to 1,034 bar (15,000 psi) - Spring-Loaded
* Seat Acetal-C Acetal-C Polysulfone Polyamide Imide Tecapeek® Tecasint® 2011 Vespel®	* Inlet / Outlet Connections 3/8" Medium Pressure 3/8" Medium Pressure 3/8" High Pressure 9/16" Medium Pressure 9/16" High Pressure
* Porting Configuration 11022000A 20001102A 10102000B 20001010B 10102010C 20101010C 22011010D 10102201D 22001010E 10102200E 20101000F 10002010F 10022000G 20001002G 10102020J 20201010J 10202020K 20201020K 10202000L 20001020L 11022201M 22011102M 10002000N 20001000N 11022020P 20201102P 11002001Q 20011100Q 11022001R 20011102R 11022010R3 20101102R3 22001000U 10002200U 22011000V 10002201V 00000000W 00000000W 10012000X 20001001X 11021020Y 10201102Y In Out Off
* Venting Options Non-Venting Non-Venting Self-Venting (Captured)

Part Order Number:

RF1034 - 05 - S - 50A - A - 03A - B - NV

REQUEST PRICE

For further information about this product, please contact:
	Phone: +44 (0)1457 899307 Email: sales@pressure-tech.com

INTRODUCING THE RF1034...

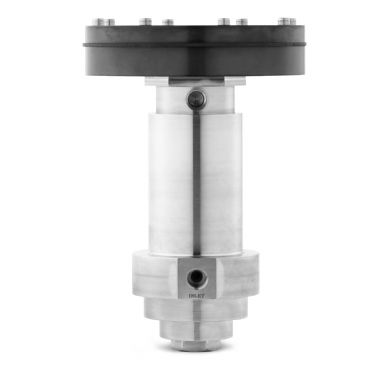

The RF1034 is a piston-sensed pressure regulator, designed for high pressure hydrogen refuelling applications up to 1,034 bar (15,000 psi).

With a balanced main valve design as standard, the RF1034 offers accurate control of the high pressures typically associated with hydrogen refuelling points.

The high-flow RF1034 is designed to ISO 19880-3 and offers convenient access to the seat cartridge in the
base of the regulator for simplified servicing.

PLEASE CONTACT THE PRESSURE TECH OFFICE FOR PRICING.

APPLICATIONS:
• Hydrogen Refuelling Stations

FEATURES:
• High-flow Cv 0.5 or 1.0 for refuelling times as per SAE J2601
• Designed to ISO 19880-3 for safe performance
of high pressure gas valves used in gaseous hydrogen stations
• Optional automated control
• Easy access to seat cartridge for simplified servicing

Max. Rated Inlet Pressure
Outlet Ranges
Design Proof Pressure
Seat Leakage
Weight

1,034 bar (15,000 psi)
Up to 1,034 bar (15,000 psi)
150% max. working pressure
In accordance with ANSI/FCI 70-3
Pneumatic: 11.4kg (25.1lbs)
Spring: 7kg (15.4lbs)
Electric: 8kg (17.6lbs)
