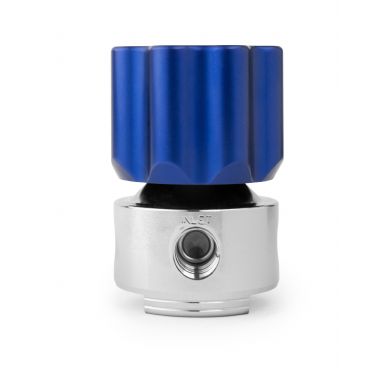

Pressure Tech DSV Diaphragm Shut-Off Valve

DSV

Diaphragm Shut-Off Valve: Gas / Diaphragm / Max. Operating: 300 bar (4,350 psi) / Kv: 0.25

* Basic Model DSV300 (Up to 300 bar) DSV300 (Up to 300 bar)	* Kv 0.3 0.3
* Material Chrome Plated Brass Chrome Plated Brass 316/316L Stainless Steel	* Inlet Connection 1/4" NPT 1/4" NPT
* Outlet Connection 1/4" NPT 1/4" NPT	* Porting C C N K

Part Order Number:

DSV300 - 3 - C - 02N - 02N - C

REQUEST PRICE

For further information about this product, please contact:
	Phone: +44 (0)1457 899307 Email: sales@pressure-tech.com

INTRODUCING THE DSV...
The DSV is a diaphragm shut-off valve and is designed for the safe, reliable and precise isolation of high purity
and speciality gases across a wide range of demanding gas-handling applications.

It utilises a metal diaphragm and poppet sealing arrangement, providing reliable gas isolation while minimising the potential for contamination and external leakage.

The design is particularly suited to applications where gas purity, leak tightness and repeatable shut-off
performance are critical.

PLEASE CONTACT THE PRESSURE TECH OFFICE IF YOUR ORDER REQUIRES ANY SPECIAL MODIFICATIONS OR REQUIREMENTS.

APPLICATIONS:

FEATURES:
• For high gas purity 6.0
• Ergonomic design
• Exceptional repeatability
• Low fugitive emission in accordance with ISO 15848-1

Max. Operating Pressure
Kv
Design Proof Pressure
Seat Leakage
External Leakage
Purity
Min/Max Temperatures
Weights

300 bar (4,350 psi)
0.25
150% max. working pressure
< 1×10 E-6 mbar L/s (Helium)
< 1×10 E-9 mbar L/s (Helium)
6.0
-25°C to +70°C (-13°F to 158°F)
2-Port: 0.3kg (0.66lbs)
4-Port: 0.62kg (1.37lbs)

Datasheets:

DSV (EN)
