Back Pressure Regulators

BP-LF2KH

Ultra-High Pressure Back Pressure Regulator: Liquid / Piston / Max. Rating: 2,068 bar (30,000 psi) / Control Range: Up to 2,068 bar (30,000 psi) / Cv 0.1

* Basic Model BP-LF2KH BP-LF2KH	* Cv Value 0.1 0.1 0.02
* Body Material ASTM 17-4 Stainless Steel ASTM 17-4 Stainless Steel	* Control Range Up to 2,068 bar (30,000 psi) - Air-Actuated Up to 2,068 bar (30,000 psi) - Air-Actuated
* O Ring FFKM (Kalrez) FFKM (Kalrez)	* Inlet / Outlet Connections 1/4" HP 1/4" HP
* Porting Configuration N

Select Porting Configuration

Part Order Number:

BP-LF2KH - 01 - R - 2068A - K - 02H - N

REQUEST PRICE

For further information about this product, please contact:
	Phone: +44 (0)1457 899307 Email: sales@pressure-tech.com

VIEW ACCESSORIES

See example of accessories typically ordered with this product.

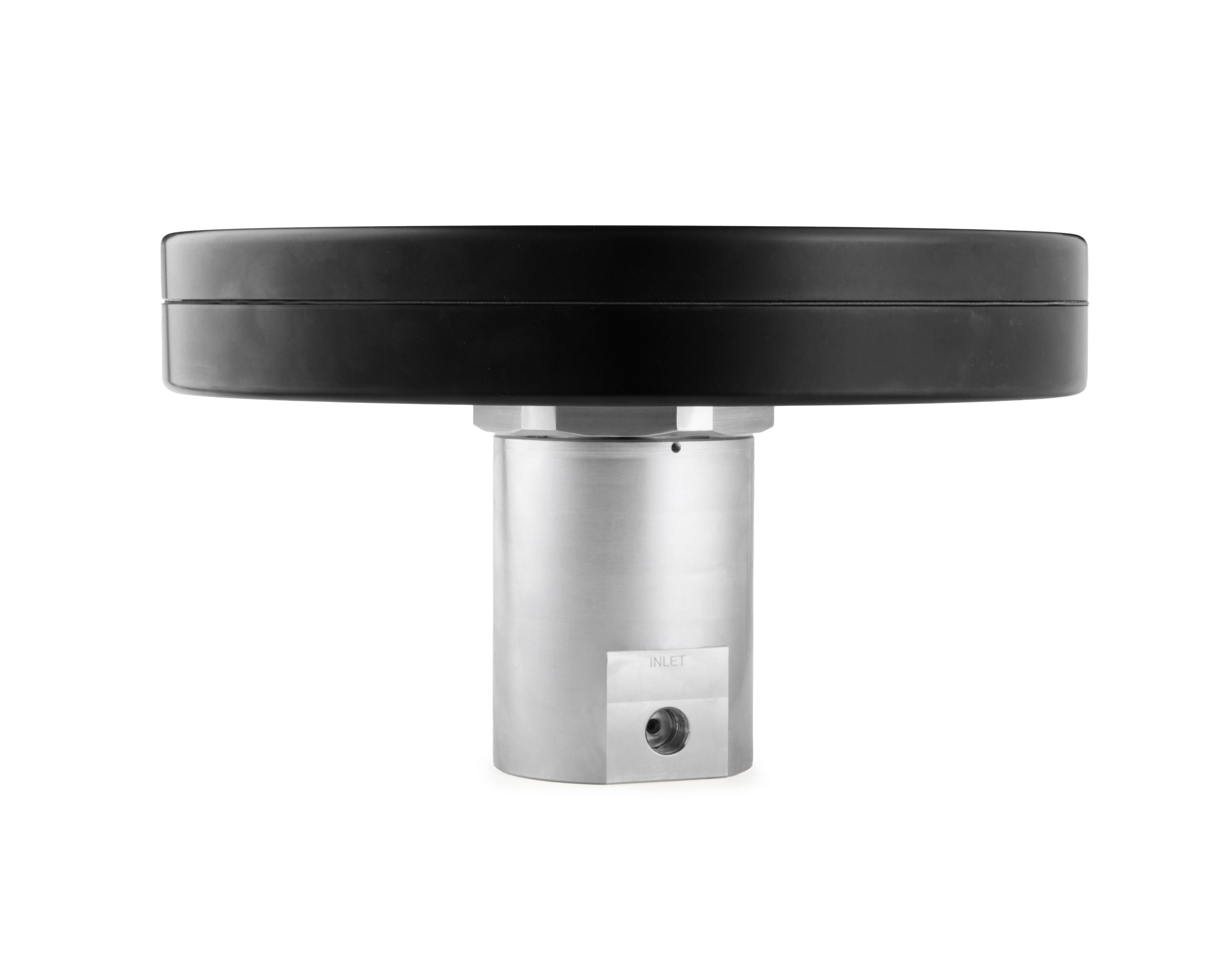

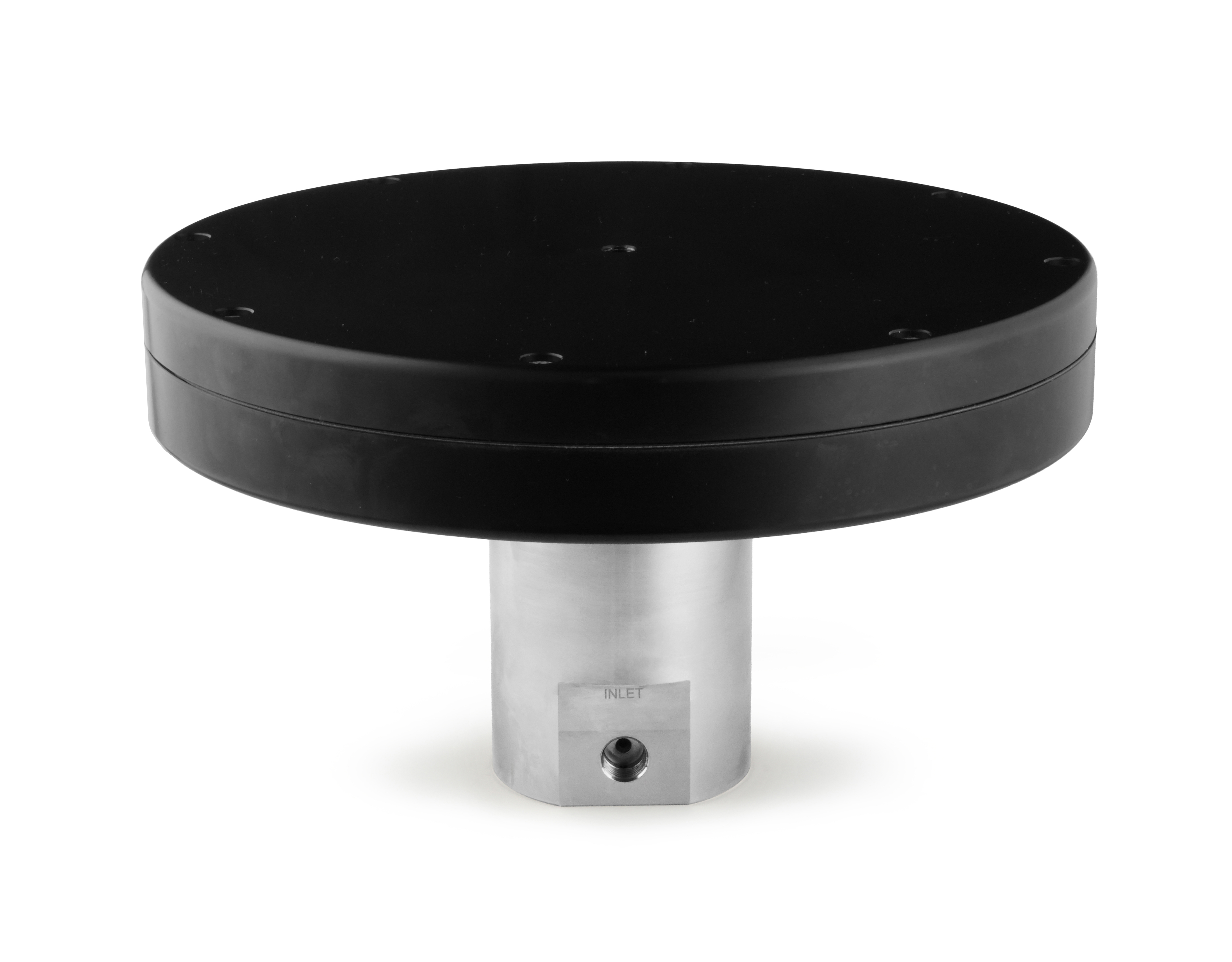

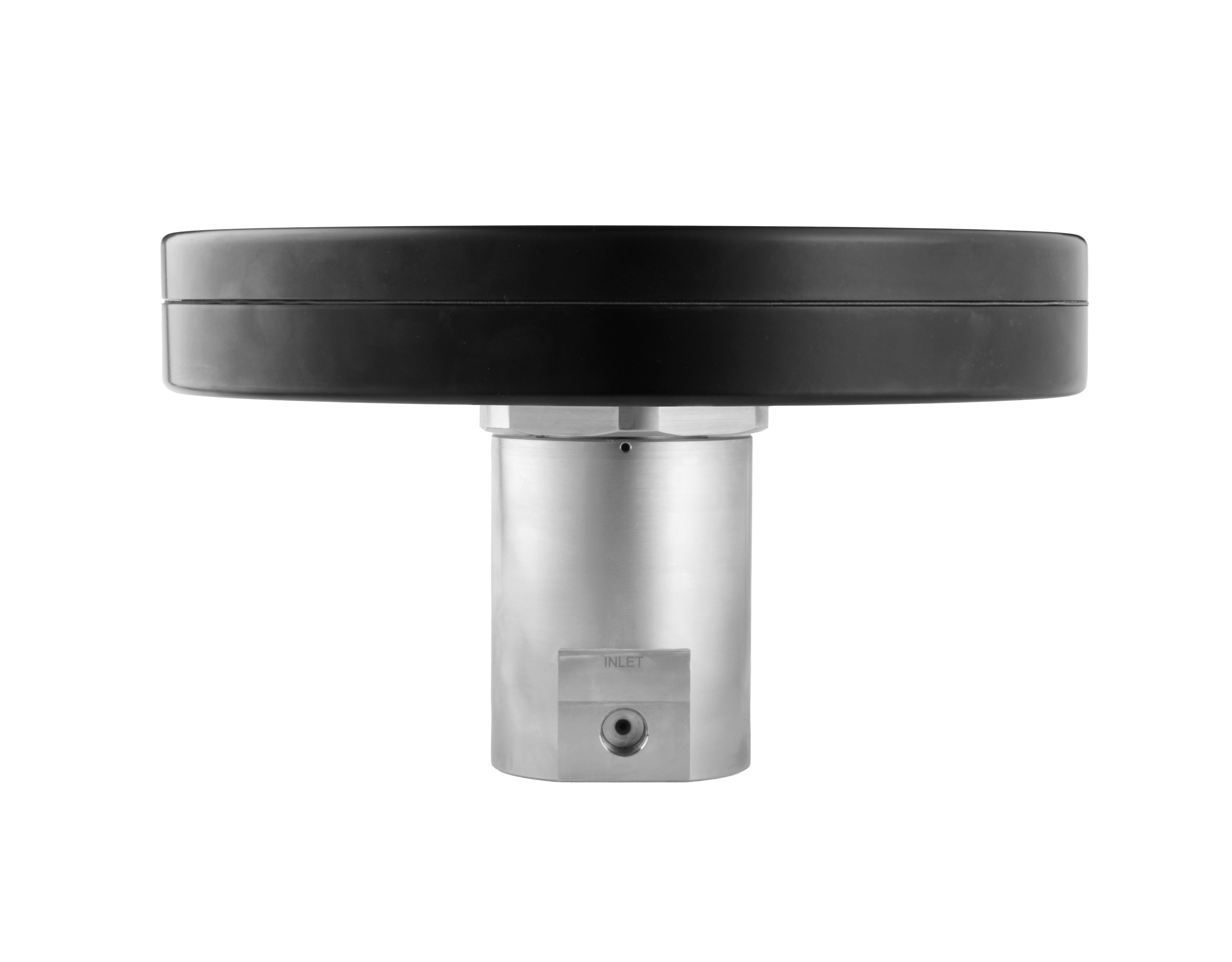

INTRODUCING THE BP-LF2KH...
The BP-LF2KH is a high-pressure, air-actuated back pressure regulator designed for demanding hydraulic applications up to 30,000 psi (2068 bar). Featuring robust piston sensing and precision control, it delivers
stable and repeatable pressure regulation across a wide operating range.

As standard, it is equipped with high-integrity metallic seating for hydraulic service, with multilayer surface coating of key internal parts for extreme performance and reliability. It accurately controls upstream (inlet) pressure and safely relieves excess pressure via high-pressure 9/16" (9/16"-18 UNF) inlet and outlet ports, ensuring compatibility with industry-standard high-pressure connections.

Engineered for reliability in extreme conditions, the BP-LF2KH is ideally suited for applications requiring
precise pressure control at ultra-high pressures.

PLEASE CONTACT THE PRESSURE TECH OFFICE IF YOUR ORDER HAS ANY SPECIAL MODIFICATIONS OR REQUIREMENTS.

APPLICATIONS:

FEATURES:
• Ultra-high pressure capability
• Air-loaded control
• Robust piston sensing design
• Multilayer surface coating

Max. Rated
Control Range
Design Proof pressure
Seat Leakage
Weight

2,068 bar (30,000 psi)
Up to 2,068 bar (30,000 psi)
150% max. working pressure
In accordance with ANSI/FCI 70-3
13kg (28.7lbs)

Datasheets:	BP-LF2KH (EN)
Other:	Image: BP-LF2KH (01) Image: BP-LF2KH (02) Image: BP-LF2KH (03) Image: BP-LF2KH (04)

Accessories

PT-C-061-003-RING & PT-C-061-003-001-RING
Panel Mount Ring: Stainless Steel or Aluminium / Suitable for Bodies with 65mm Diameter / Used on BP-LF550, BP-LF690, BP-MF690 (05), BP-MF690 (15), LF-690, LF-691, LF-692 and MF-414
