Hydrogen & Fuel Cell Pressure Regulators
The fuel cell requires a pressure regulator with a range of features to provide accurate and stable control under varying operating conditions. Why is this so important? Without the protection of a high quality pressure regulator, pressure spikes can have potentially devastating consequences on the fuel cell. Our range includes back pressure and forward reducing regulators for applications such as drones, forklifts, refuelling stations, buses/trucks and electrolysers. This includes our EC79 approved AUTO438 regulator and TPED approved CV414-SC cylinder valve.
ENQUIRE |  |
|
Hydrogen & Fuel Cell Pressure Regulators |

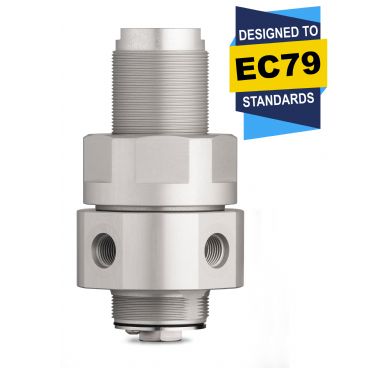

 AUTO438EC79 Approved Pressure Regulator for Hydrogen Fuel Cell Buses and Trucks: Gas / Piston / Non-Venting / Max. Inlet: 438 bar (6,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.25 |
AVC690Normally Closed Actuated Valve: Gas or Liquid / Piston / Max. Inlet: 690 bar (10,000 psi) / Max. Outlet: 690 bar (10,000 psi) / Cv 0.8 |
AVO690Normally Open Actuated Valve: Gas or Liquid / Piston / Max. Inlet: 690 bar (10,000 psi) / Max. Outlet: 690 bar (10,000 psi) / Cv 0.8 |
BP301Back Pressure Regulator for Electrolysis Applications: Gas or Liquid / Piston / Max. Rating: 150 bar (2,175 psi) / Control Range: 150 bar (2,175 psi) / Cv 0.1 |
CV414-SCTPED Approved Self-Closing Cylinder Valve: Gas / Max. Rating: 414 bar (6,000 psi) / Cv 0.06 / TPED For Up To 350 bar (5,075 psi) |
H875Pressure Regulator for Hydrogen Passenger Vehicles: Gas / Piston / Non-Venting / Max. Inlet: 875 bar (12,690 psi) / Max. Outlet: 100 bar (1,450 psi) / Cv 0.5 |
LW351Pressure Regulator for Drone & Lightweight Hydrogen Fuel Cell Applications with Direct Cylinder Connection: Gas / Piston / Non-Venting / Max. Inlet: 350 bar (5,075 psi) / Max. Outlet: 3 bar (45 psi) / Cv 0.06 |
LW438Pressure Regulator for Hydrogen Fuel Cell Material Handling Applications: Gas / Piston / Non-Venting / Max. Inlet: 438 bar (6,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.06 |
LW-TS414Lightweight Two-Stage Pressure Regulator for Hydrogen Fuel Cell Applications: Gas / Piston / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 1 bar (14.5 psi) / Cv 0.06 |
RF1034Pressure Regulator for Hydrogen Refuelling Applications: Gas / Piston / Non-Venting or Self-Venting (Captured) / Max. Inlet: 1,034 bar (15,000 psi) / Max. Outlet: 1,034 bar (15,000 psi) / Cv 0.5 or 1.0 |
| |
|
